设计与制造按Design and manufacture: GB12239
结构长度按Structure length: GB12221
法兰连接尺寸按Flange connection size: HG20592
试验与检验按Test and inspection: GB/T13927
性能规范
| 型号 | 公称压力PN(MPa) | 试验压力Ps(MPa) | 适用介质 | 工作温度℃ | |
| 壳体试验 | 密封试验 | ||||
| J45/F46/J-6 | 0.6 | 0.9 | 0.66 | W.非腐蚀性流体 | ≤100 |
| J.一般腐蚀性流体 | ≤85 | ||||
| J45/F46/J-10 | 1.0 | 11 | 1.5 | FS.强酸、碱及各种有机溶剂 （溶融碱金属及无素氟除外） | ≤150 |
主要零件材料
| 零件名称 | 阀体、阀瓣、阀盖 | 阀杆、阀瓣 | 手轮 |
| 材料 | WCB衬橡胶、衬氟塑料 Lined with rubber and fluorine plastic | 35衬橡胶、衬氟塑料 Lined with rubber and fluorine plastic | HT200 |

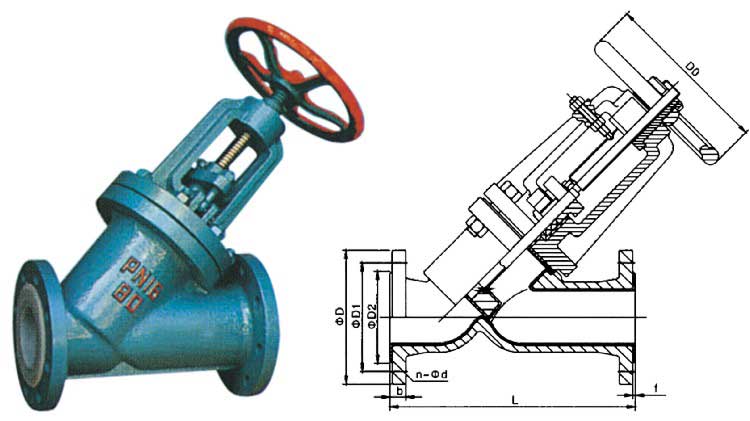

外形尺寸、连接尺寸及重量
| 型号 | 公称通径 DN(mm) | 尺寸(mm) | 重量(kg) | |||||||
| L | D | D1 | D2 | H1 | b | D0 | N-d | |||
| J45F46/J-6/10 | 25 | 160 | 105 | 75 | 60 | 205 | 16 | 120 | 4-14 | 4.5 |
| 32 | 180 | 140 | 100 | 70 | - | 16 | 160 | 4-18 | 13 | |
| 40 | 200 | 150 | 110 | 80 | 250 | 16 | 160 | 4-18 | 14 | |
| 50 | 230 | 165 | 125 | 90 | 290 | 16 | 160 | 4-18 | 16.5 | |
| 65 | 290 | 185 | 145 | 110 | 310 | 16 | 180 | 4-18 | - | |
| 80 | 310 | 200 | 160 | 125 | 358 | 18 | 200 | 8-18 | 36 | |
| 100 | 350 | 220 | 180 | 145 | 428 | 18 | 200 | 8-18 | 50 | |
| 125 | 400 | 250 | 210 | 175 | 510 | 20 | 280 | 8-18 | 68 | |
| 150 | 480 | 285 | 240 | 200 | 550 | 20 | 280 | 8-22 | 90 | |
| 200 | 600 | 340 | 295 | 225 | 635 | 22 | 400 | 8-22 | 146 | |
| 250 | 730 | 395 | 350 | 312 | - | 24 | - | 12-22 | - | |
